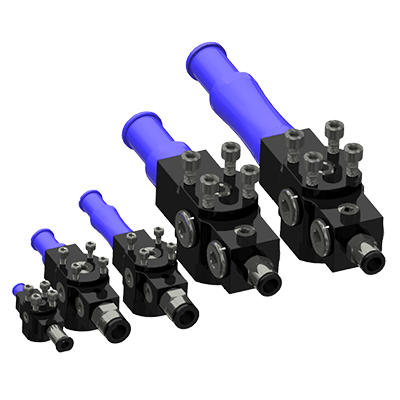

The HGS Cartridge Style Vacuum Venturi Generator is a compact, high-performance vacuum generator designed for decentralized automation systems. As a USA-based supplier of vacuum venturi generators, Vacuforce provides reliable venturi technology for robotic pick-and-place, packaging machinery, assembly systems, and industrial automation applications.
This inline cartridge vacuum venturi generator creates vacuum directly at the point of use, reducing hose length, improving response time, and increasing system efficiency. The straight-through coaxial design aligns compressed air inlet and exhaust ports for simplified installation and clean routing in end-of-arm tooling (EOAT) and machine-mounted configurations.
Ideal for applications requiring fast evacuation, consistent vacuum levels, and compact installation, this venturi vacuum generator delivers dependable performance without moving parts, making it a low-maintenance solution for industrial environments.
Optional vacuum ports allow integration with vacuum sensors or gauges for monitoring system performance and maintaining process reliability.Three body heights are available to accommodate various Z-axis offsets when suction cups are mounted directly to the venturi generator, allowing precise tooling alignment in automated systems.Vacuforce supplies vacuum venturi generators across the USA, supporting OEMs, integrators, and manufacturers with technical guidance and fast fulfillment.

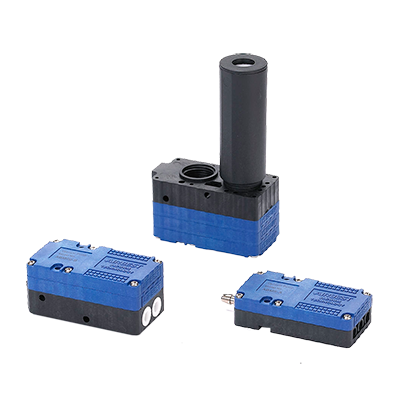

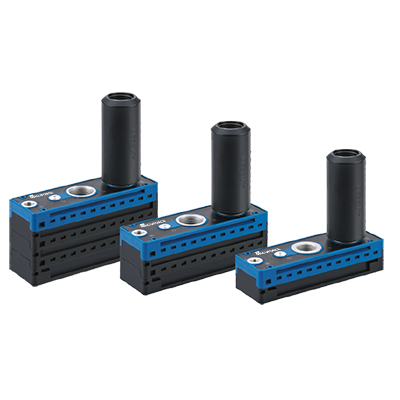

The Vacuforce multi-stage vacuum venturi generator is a high-efficiency, air-powered vacuum generator engineered for centralized vacuum systems and high-flow industrial applications. Designed with advanced three-stage venturi technology, this vacuum generator delivers exceptional vacuum flow relative to compressed air consumption, making it ideal for applications requiring multiple suction cups or high evacuation capacity.
Unlike traditional dry running rotary vane vacuum pumps, this venturi vacuum generator operates without moving parts, reducing maintenance requirements while improving reliability in demanding industrial environments. Its lightweight plastic body with optional aluminum or PPS (polyphenylene sulfide) port plate offers durability, corrosion resistance, and long service life in automation, packaging, and material handling systems.
The multi-stage venturi design maximizes airflow efficiency and provides strong vacuum performance while maintaining extremely quiet operation, as low as 45 dB(A). Threaded BSPP and NPSF ports allow easy integration into centralized vacuum manifolds and compressed air systems.
This vacuum venturi generator is well suited for:
The Vacuforce multi-stage vacuum venturi generator is a high-efficiency, air-powered vacuum generator engineered for centralized vacuum systems and high-flow industrial applications. Designed with advanced three-stage venturi technology, this vacuum generator delivers exceptional vacuum flow relative to compressed air consumption, making it ideal for applications requiring multiple suction cups or high evacuation capacity.
Unlike traditional dry running rotary vane vacuum pumps, this venturi vacuum generator operates without moving parts, reducing maintenance requirements while improving reliability in demanding industrial environments. Its lightweight plastic body with optional aluminum or PPS (polyphenylene sulfide) port plate offers durability, corrosion resistance, and long service life in automation, packaging, and material handling systems.
The multi-stage venturi design maximizes airflow efficiency and provides strong vacuum performance while maintaining extremely quiet operation, as low as 45 dB(A). Threaded BSPP and NPSF ports allow easy integration into centralized vacuum manifolds and compressed air systems.
This vacuum venturi generator is well suited for:

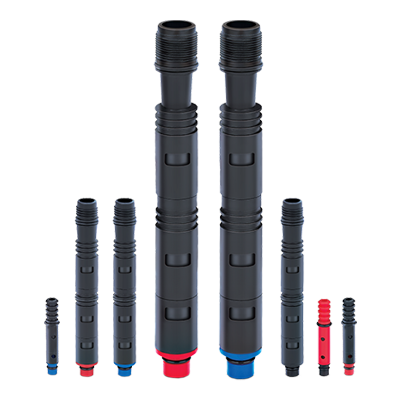

Vacuforce Venturi Coaxial Cartridges are high-efficiency vacuum cartridge elements designed for use in venturi vacuum generators and decentralized vacuum systems. These compact vacuum cartridges utilize multi-stage venturi technology to deliver strong vacuum flow while optimizing compressed air consumption.
Engineered for OEM integration and field replacement, these venturi cartridges can be used to replace worn or damaged vacuum cartridges or to upgrade existing venturi vacuum generator installations for improved performance. Their coaxial design allows for straight-through airflow, reducing pressure drop and maximizing evacuation speed in automation applications.
Available in multiple flow configurations, Vacuforce venturi cartridges provide a range of vacuum flow rates and vacuum levels to meet the needs of robotic pick-and-place systems, packaging machinery, assembly equipment, and custom machine designs.
Machine builders and integrators across the USA use Vacuforce vacuum venturi cartridges to incorporate reliable, air-powered vacuum generation directly into tooling assemblies and EOAT systems.

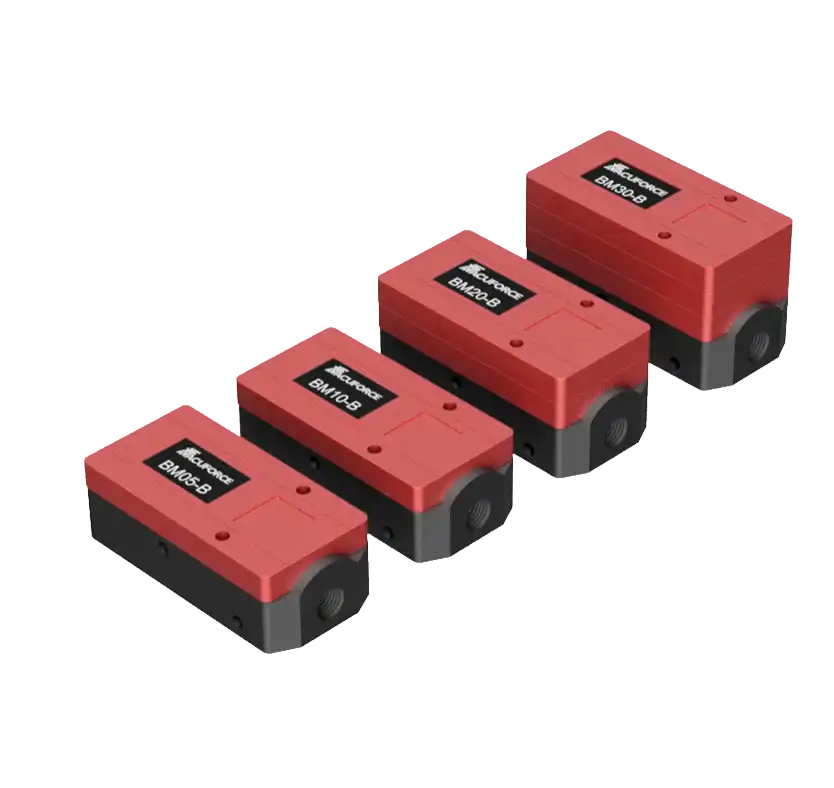

The Vacuforce compact two-stage vacuum venturi generator is a high-efficiency, air-powered vacuum generator designed for decentralized automation and suction cup applications. Engineered with advanced two-stage venturi technology, this unit delivers strong vacuum flow while minimizing compressed air consumption, making it ideal for cost-effective vacuum generation in industrial environments.
Its lightweight plastic body construction allows direct mounting to suction cups for point-of-use vacuum creation, reducing hose length, improving response time, and increasing system efficiency. These compact vacuum venturi generators can also be integrated into centralized vacuum systems where multiple suction cups require reliable airflow and stable vacuum levels.
Integral silencers reduce exhaust noise and improve workplace conditions, with optional external silencer configurations available for additional noise control. Threaded BSPP and NPSF ports ensure easy integration into compressed air and vacuum systems commonly used in packaging, material handling, assembly automation, and robotic end-of-arm tooling (EOAT).
Designed for applications requiring fast evacuation, consistent vacuum performance, and compact installation, this two-stage venturi vacuum generator offers dependable operation with no moving parts and minimal maintenance.
Vacuforce supplies compact vacuum venturi generators across the USA, supporting OEMs, system integrators, and manufacturers with application guidance and fast fulfillment.

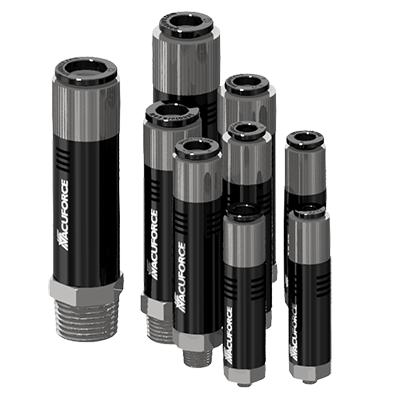

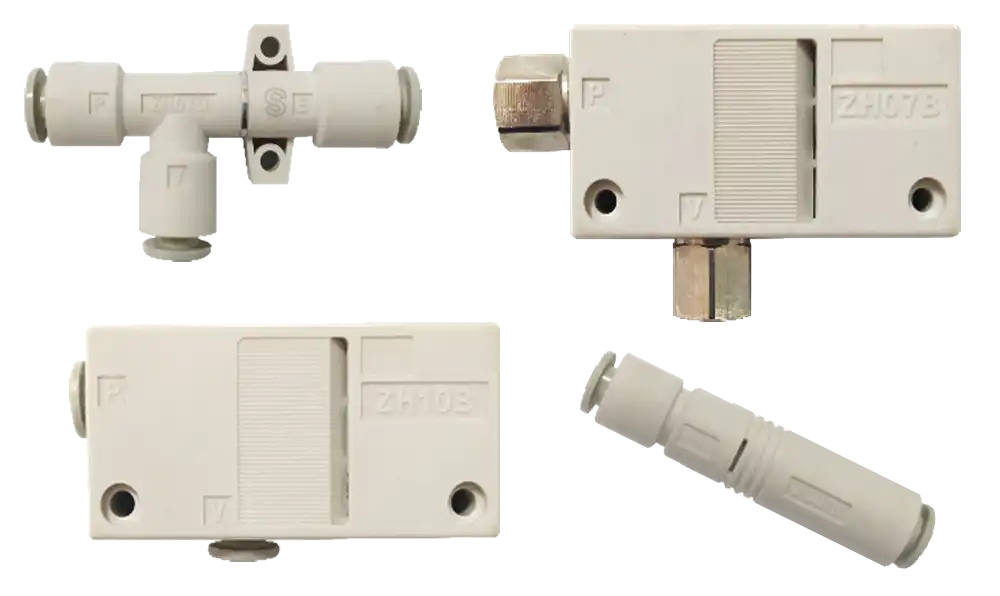

The Vacuforce ZH Style Venturi Ejectors provide a cost-effective, space-saving solution for generating vacuum using compressed air. These air powered vacuum ejectors are designed for high-performance industrial automation, delivering reliable vacuum generation for pick-and-place, packaging, material handling, electronics assembly, and robotic applications.
Engineered for durability and efficiency, ZH venturi ejectors use compressed air to create vacuum without electrical power or moving parts. Their compact inline body design allows easy integration into tight machine spaces, making them ideal for decentralized vacuum systems and point-of-use vacuum generation.
Fast response time, minimal maintenance, and simple installation make ZH venturi ejectors a dependable solution for both new equipment builds and retrofit applications.

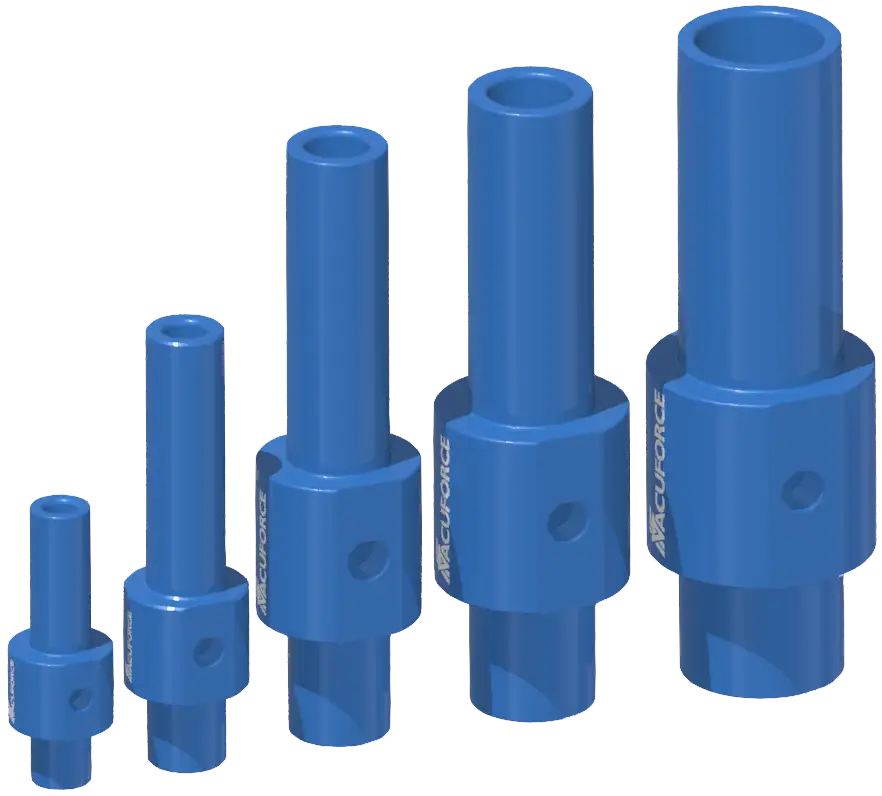

The Vacuforce Flow Through Vacuum Venturi Generator is a rugged, air-powered vacuum generator designed for industrial applications where dust, debris, and harsh operating conditions are present. Unlike traditional vacuum generators that can clog in contaminated environments, the flow-through design allows particles to pass through the venturi body, maintaining consistent vacuum performance even in abrasive or dirty applications.
This inline vacuum venturi generator is commonly used for small part conveyance such as plastic pellets, as well as demanding pick-and-place applications involving stone, brick, concrete, and other dusty materials. Its open-flow design minimizes blockage risk and ensures reliable vacuum generation in environments where standard vacuum pumps may fail.
Engineered for Harsh Industrial Environments
Manufactured in aluminum with a hard anodized finish or available in a stainless steel construction, the Vacuforce flow-through venturi generator is built for durability and long service life. The hard anodized surface resists abrasion, making it ideal for high-wear applications.
With no moving parts and no heat generation, this air-powered vacuum generator offers dependable, maintenance-free operation in industrial automation systems.
The Vacuforce Vacuum Venturi Conveyor Generator is an air-powered vacuum conveying solution designed for efficient part transfer and material handling in industrial environments. Using compressed air to generate high-velocity vacuum flow, these venturi conveyors move lightweight materials, waste, pellets, and parts without mechanical conveyors or moving components.
Ideal for injection molding, paper cut-off extraction, plastic scrap removal, steel waste transfer, and general part conveying, these vacuum venturi conveyors provide a compact, maintenance-free alternative to traditional mechanical conveying systems.
Industrial Vacuum Conveying Without Moving Parts
Vacuforce venturi conveyor generators operate using a proven venturi vacuum principle. Compressed air creates a powerful suction stream that pulls materials through the conveyor body. With no moving parts, no motors, and no heat generation, these systems deliver reliable, low-maintenance performance in demanding industrial applications.
Available in aluminum with hard anodized finish or stainless steel construction, these vacuum conveying units are designed for abrasive environments and long service life.
